High Hardness CVD Polycrystalline Diamond CVD Diamond Bars For Diamond Dressing Rotary Wheel

China High Hardness CVD Polycrystalline Diamond CVD Diamond Bars For Diamond Dressing Rotary Wheel supplier

Large Image :  High Hardness CVD Polycrystalline Diamond CVD Diamond Bars For Diamond Dressing Rotary Wheel

Product Details:

Place of Origin: China
Brand Name: ZZDM
Certification: ISO9001:2015
Model Number: Poly-CVD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD,JPY,RMB
Packaging Details: Plastic Case Package
Delivery Time: 5-8work days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Diamond Type: Synthetic (lab Created) Material: Carbon, Synthetic Diamond, Lab Created Diamond, CVD, Lab-grown
Product Name: Synthetic Diamond Lab Grown Cut Diamonds, Diamond Gemstone, Diamond CVD, White Rough Hthp Synthetic Diamond, Lab Created CVD Polished Diamond Hardness: 10 Moh's Scale

CVD Diamond Bars, CVD Diamond, CVD Polycrystalline Diamond, Lab Grown Diamond



CVD Polycrystalline Diamond

ZZDM can supply both mono crystalline and poly crystalline CVD diamond.

Our DMCVD can be divided into several grades according to different application, which are for industrial usages, for gem making and optical utility.



Properties Data
Vickers-Hardness (kg/mm²) 10,000
Density (g/cm3) 3.52
Young's Module (GPa) 1100
Thermal Conductivity (w/cm.k) 8-20
Bending Strenght (MPa) (0.5mm Thickness) 300-600
Thermal Stability 8000C
Wear Resistance Ratio (Ten Thousand) 10-85



CVD Diamond Dressing Tool Blanks



Advantages:

* Pure diamond with high hardness and without binder phase

* Excellent thermal stability

* High wear resistance

* High abrasion



Applications:

* Single point diamond dressing tool

* Multipoint diamond dressing tool

* Diamond dressing rotary wheel

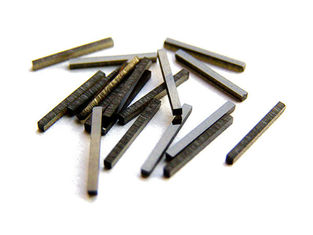

CVD Diamond Bars

ITEM CODE THICKNESS (mm) WIDTH (mm) LENGTH (mm)
CVD L030404 0.4 0.4 3.0
CVD L400404 0.4 0.4 4.0
CVD L500404 0.4 0.4 5.0
CVD L300606 0.6 0.6 3.0
CVD L400606 0.6 0.6 4.0
CVD L500606 0.6 0.6 5.0
CVD L150808 0.8 0.8 1.5
CVD L300808 0.8 0.8 3.0
CVD L400808 0.8 0.8 4.0
CVD L500808 0.8 0.8 5.0
CVD L301010 1.0 1.0 3.0
CVD L401010 1.0 1.0 4.0
CVD L501010 1.0 1.0 5.0
CVD L301515 1.5 1.5 3.0
CVD L301530 1.5 3.0 3.0
CVD L351530 1.5 3.0 3.5
CVD L401530 1.5 3.0 4.0
CVD L351830 1.8 3.0 3.5
CVD L351835 1.8 3.5 3.5

Above are our standard sizes, non-standard dimensions are available on request.
