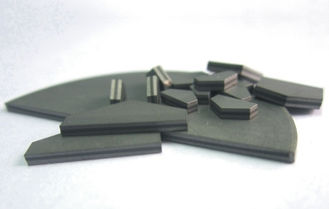

0.5 - 0.8mm Diamond Thickness Sandwich PCD Blanks Diameter Φ 45mm For Drilling

0.5 - 0.8mm Diamond Thickness Sandwich PCD Blanks Diameter Φ 45mm For Drilling
0.5 - 0.8mm Diamond Thickness Sandwich PCD Blanks Diameter Φ 45mm For Drilling

Large Image :  0.5 - 0.8mm Diamond Thickness Sandwich PCD Blanks Diameter Φ 45mm For Drilling

Product Details:
Place of Origin: CHINA
Brand Name: ZZDM
Certification: ISO9001:2015
Model Number: DM025S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD,JPY,RMB
Delivery Time: 5-8work days
Payment Terms: T/T in Advance
Supply Ability: 1000PCS/month

0.5 - 0.8mm Diamond Thickness Sandwich PCD Blanks Diameter Φ 45mm For Drilling

Description
Size: Customized And Standard Size, φ45mm Material: Carbide Substrate And Polycrystalline Diamond, Diamond Powder, Diamond Grain And Tungsten Carbide, Diamond Layer+Tungsten Carbide Support, PCD+TC
Usage: Metalworking Etc, Cutting Tools, To Cut Stone Or Metal Cutting, For Making PCD Drill Application: Cutting, For Non-ferrous Metal, Ceramic, Rough Machining, SIC
Diamond Thickness: 0.5-0.8mm Diamond Content: ≥ 90%
High Light:

pcd cutting tool blanks

,

pcd diamond tools blanks

DM025S Sandwich PCD Cutting Tools Blank,For Drilling Application



Sandwich PCD is composed of PCD layer that is sandwiched by tungsten carbide layers in both(top & bottom) sides, the sintering technology is more strict and more difficult than normal type PCD, primarily used for drilling application.



PCD Grade Grain Size Diameter Diamond layer thickness Overall thickness
DM025S 25 μm Φ 45 mm 0.5 mm 1.5 /2.0/3.0mm
